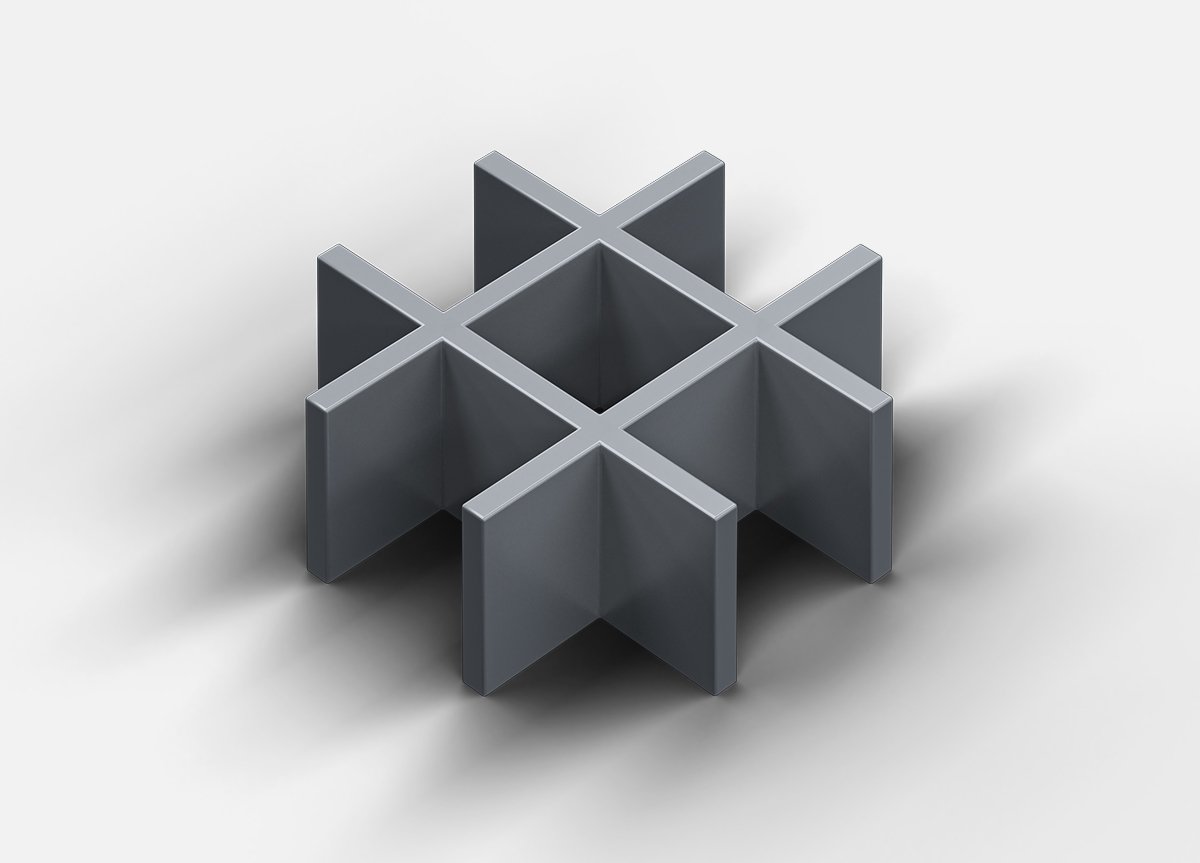

Standard Mesh

4'x8'x1" (1.5"x1.5" OC)

Aperture 1 ¼”x1 ¼”

A reliable, mid-profile tray ideal for general-purpose support. This size provides a balanced combination of rigidity and weight savings—excellent for reinforcing 2cm and 3cm porcelain in areas requiring supplemental load distribution.

4'x8'x1.5" (1.5"x1.5" OC)

Aperture 1 ¼”x1 ¼”

Our highest-strength standard-mesh tray in the 4' x 8' format. The added 1.5" depth dramatically improves stiffness and load-carrying ability, making it suitable for heavier paver assemblies, high-traffic decks, and installations where increased impact protection is essential.

4'x12'x1" (1.5"x1.5" OC)

Aperture 1 ¼”x1 ¼”

A longer-span option that reduces seams and speeds up installation on large roof decks, plazas, and commercial terraces. The 1" depth keeps weight manageable while maintaining robust load performance across extended runs.

4'x12'x0.5"

Aperture 2”x2”

A lightweight, low-profile FRP tray best suited for installations requiring broader mesh openings and reduced overall height.

Surface Options:

Gritted Surface

A durable quartz-grit layer is bonded to the top of the FRP panel, creating a highly slip-resistant walking surface engineered for demanding environments. The aggressive texture provides exceptional traction in wet, oily, or icy conditions and typically achieves R13 wet/oil ramp and P5 wet pendulum ratings. This is our highest-performance option for safety-critical areas.

Smooth Surface

After curing, the concave finish is machine-sanded to a completely flat profile and sealed with a resin topcoat. This creates a clean, uniform appearance suitable for architectural or design-driven applications, where visual consistency and a refined surface are priorities.
