Mini Mesh

4’x8’x1” (1.5”x1.5” OC)

Aperture ¾”x¾”

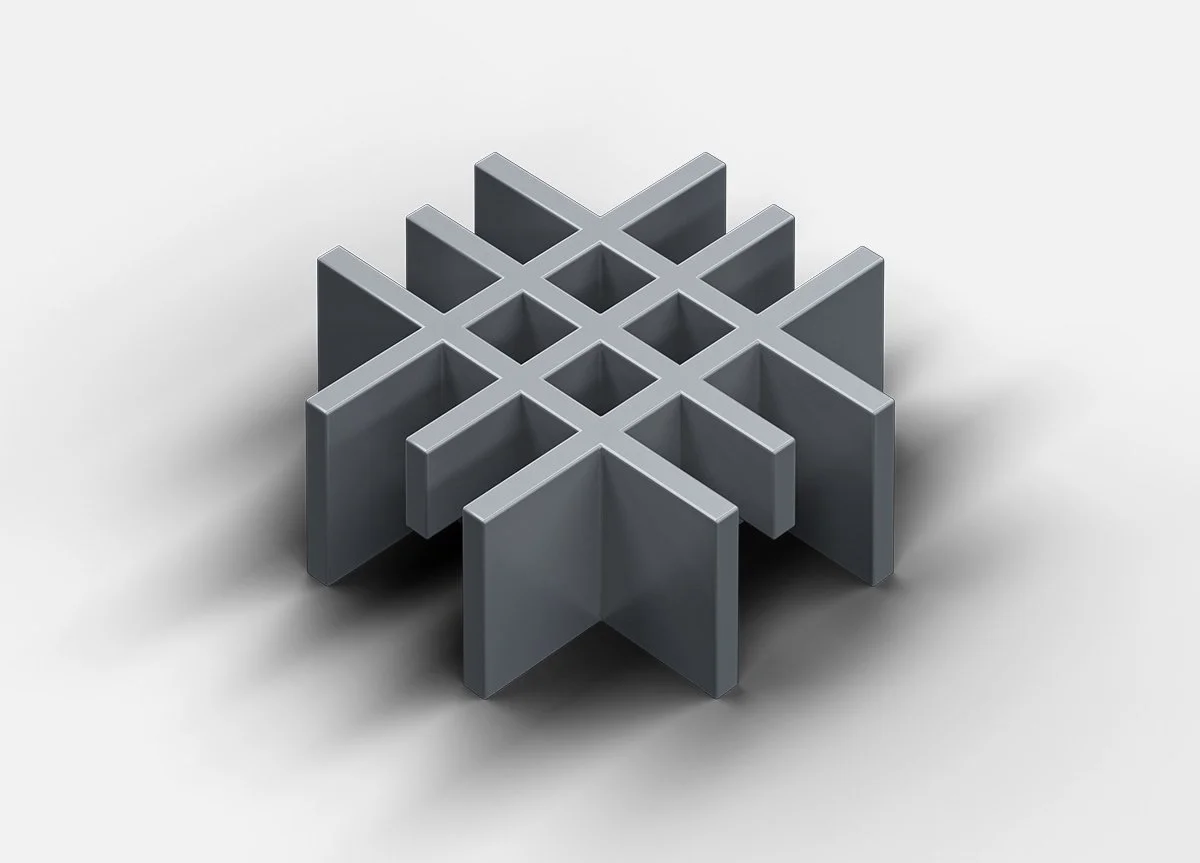

Mini Mesh FRP Grating offers a balanced combination of strength, safety, and open-area efficiency. Featuring medium-sized mesh openings, this fiberglass-reinforced grating provides excellent slip resistance while minimizing object fall-through, making it ideal for walkways, platforms, and industrial environments. Its corrosion-resistant composite construction ensures long-term durability in harsh conditions, including chemical, marine, and outdoor applications. Lightweight yet structurally robust, Mini Mesh FRP Grating installs easily, reduces maintenance costs, and delivers reliable performance wherever a versatile, mid-mesh solution is needed.

4’x8’x1.5” (1.5”x1.5” OC)

Aperture ¾”x¾”

1.5" Thick is a heavy-duty, fiberglass-reinforced solution designed for applications requiring superior strength and reliable mid-size mesh openings. With its 1.5-inch structural depth, this grating delivers exceptional load-bearing performance while maintaining the enhanced slip resistance and reduced fall-through protection of a mini mesh design. Engineered for corrosion resistance and long-term durability, it is ideal for industrial platforms, chemical processing areas, walkways, and harsh outdoor environments. Lightweight, low-maintenance, and easy to install, this grating provides a strong, versatile, and cost-effective alternative to steel.

4’x12’x1” (1.5”x1.5” OC)

Aperture ¾”x¾”

12' Mini Mesh FRP Grating – 1.5" Thick provides a durable, corrosion-resistant solution for industrial walkways, platforms, and structural flooring. With its mid-size mesh pattern and 1.5-inch depth, this fiberglass-reinforced grating delivers strong load-capacity performance while enhancing safety through excellent slip resistance and reduced object fall-through. The 12-foot length offers efficient coverage and easy installation for both new construction and retrofit projects. Lightweight, low-maintenance, and built to withstand harsh environments, this grating is a reliable alternative to steel for long-lasting structural support.

Surface Options:

Gritted Surface

A durable quartz-grit layer is bonded to the top of the FRP panel, creating a highly slip-resistant walking surface engineered for demanding environments. The aggressive texture provides exceptional traction in wet, oily, or icy conditions and typically achieves R13 wet/oil ramp and P5 wet pendulum ratings. This is our highest-performance option for safety-critical areas.

Smooth Surface

After curing, the concave finish is machine-sanded to a completely flat profile and sealed with a resin topcoat. This creates a clean, uniform appearance suitable for architectural or design-driven applications, where visual consistency and a refined surface are priorities.
