MACROMESH

Panel dimensions may vary by up to 1/8” . Allowances should be made for this manufacturing tolerance when constructing frames to contain panels.

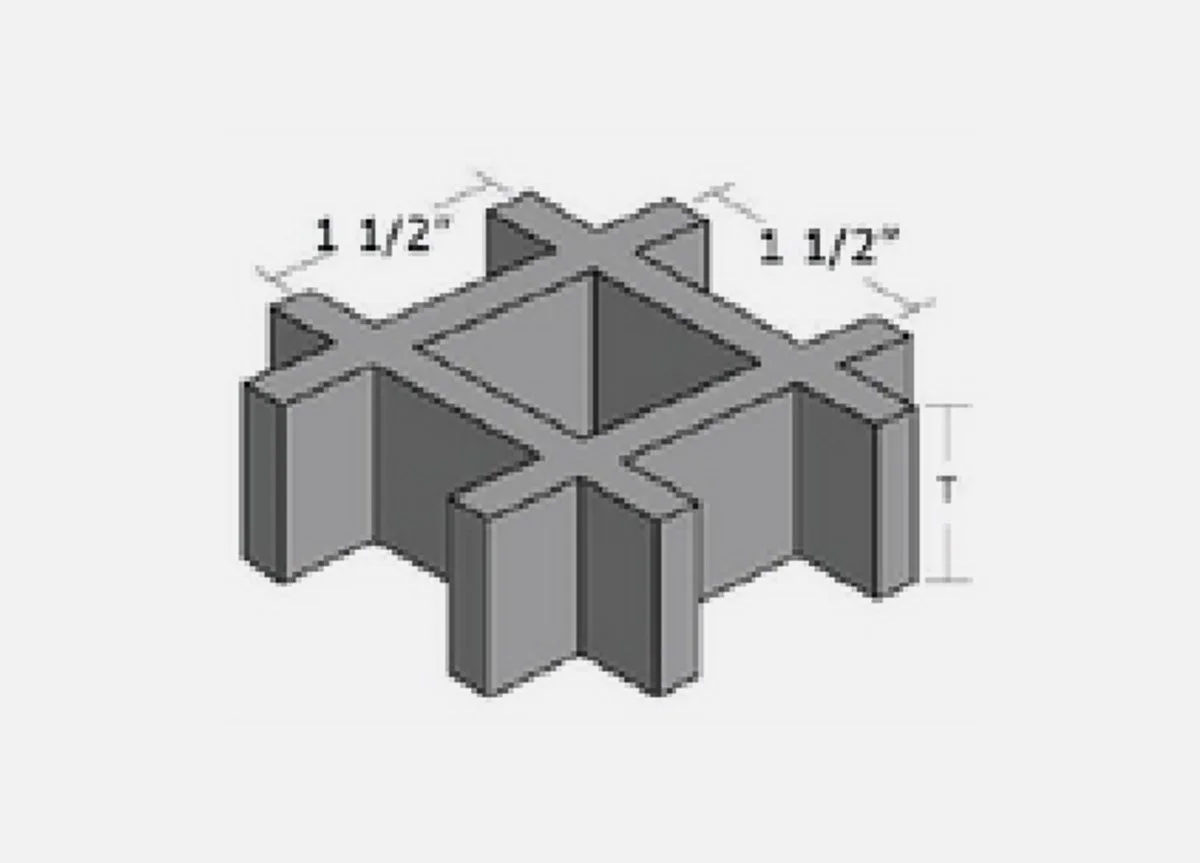

Primary grid bars - 1 1/2” x 1 1/2” (on center)
Secondary grid bars - N/A
Aperture - 1 1/4” x 1 1/4”
Load bar thickness - 1/4”
Panel thickness - 1 3/16”
Open space - 68%
Panel size - 4’ x 8’
Weight - 2.5 lb / sq.ft.
